💾 Instill Artifact Quickstart

Welcome to the Instill Artifact Quickstart Guide! Here you will learn how to build your own Instill Catalog, and how to use the Ask Catalog API.

Instill Artifact transforms unstructured data into an AI-ready format within Instill Catalog, supporting various file types like documents, images, audio, and video. It simplifies AI and RAG preparation by converting raw files into an augmented data catalog, accessible via low-latency APIs. It can be seamlessly integrate with Pipeline and Model, all while maintaining transparency, data integrity, and scalability, making it easy to manage and automate unstructured data transformations for your AI needs.

For this guide, we will be using Shakespeare's play, A Midsummer Night's Dream, as our sample document from Project Gutenberg.

#Prerequisites

  • Please launch a Instill Core instance.
  • Download the play as a .pdffile from this link. Ensure that it saves to your local machine with the name midsummer-nights-dream.pdf.

#Create Instill Catalog via 📺 Instill Console

Creating an AI-ready Instill Catalog consists of three steps: Create Catalog, Upload Files, and Process Files. The fastest way to get started with Instill Artifact is via the Console UI. Let's get started!

#Create Catalog

To create a new empty Catalog, follow these steps:

  1. Launch Instill Console via a local Instill Core deployment at http://localhost:3000
  2. Navigate to the Artifacts page using the navigation bar
  3. Click the + Create Catalog button
  4. Select the Owner (namespace)
  5. Enter 'shakespeare' as the name for your Catalog
  6. Enter 'Works of Shakespeare' as the description for your Catalog
  7. Click the Create button

#Upload Files

To upload the midsummer-nights-dream.pdf file to the 'shakespeare' Catalog, follow these steps:

  1. Click the 'shakespeare' Catalog card
  2. Select Upload Documents in the left panel
  3. Drag and drop your midsummer-nights-dream.pdf file into the blue box or click browse computer to locate and upload it

#Process Files

To process midsummer-nights-dream.pdf into chunks and corresponding embeddings, simply click the Process Files button. The processing status appears in the Files tab.

Files tab view which shows the processing status
Files tab view which shows the processing status

When the status is Completed, you can view your Files and Chunks.

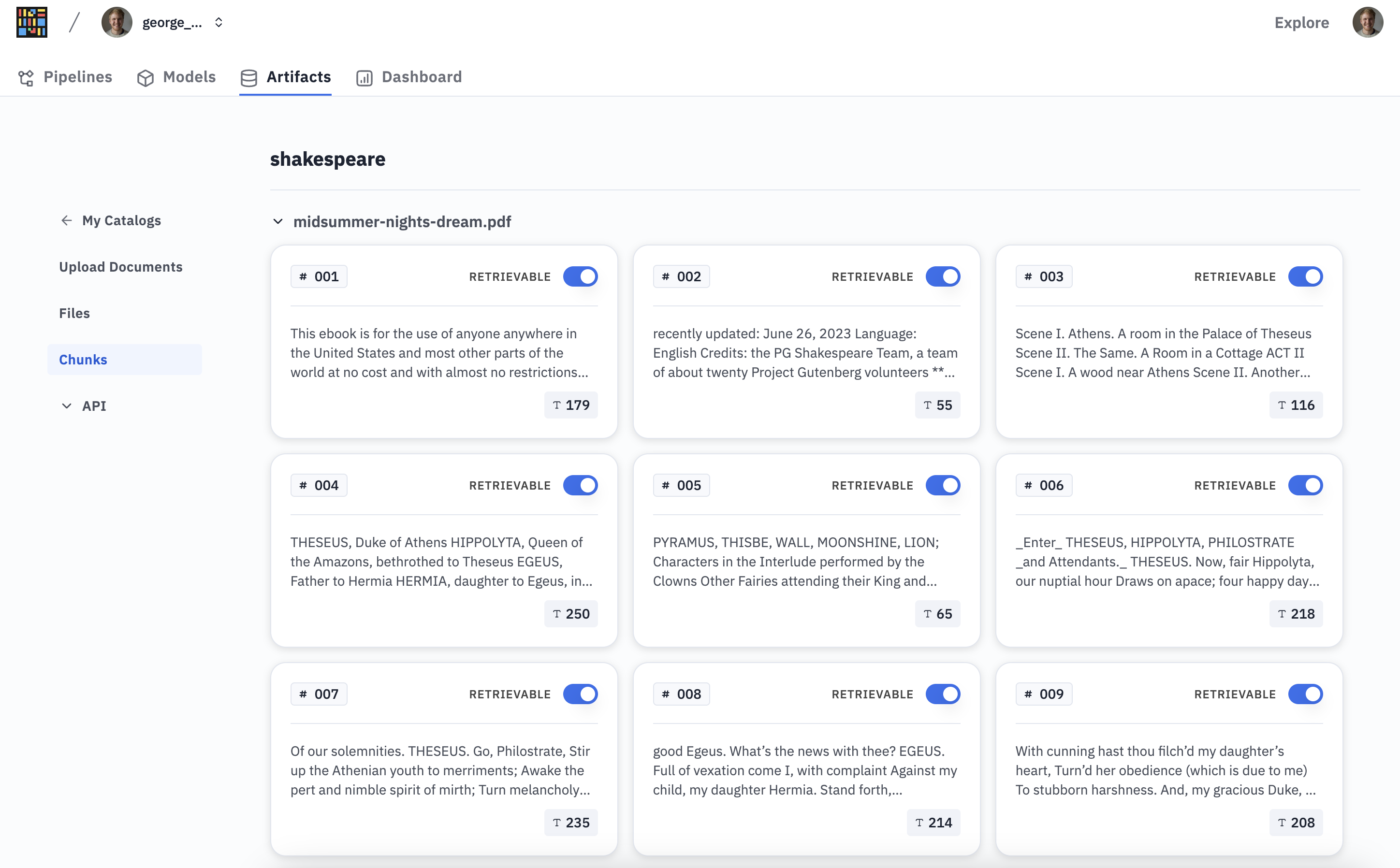

Chunks tab view which shows the text chunks after processing is complete
Chunks tab view which shows the text chunks after processing is complete

#Create Instill Catalog via the API

Creating an AI-ready Instill Catalog consists of three steps: Create Catalog, Upload Files, and Process Files.

#Create Catalog

To create a new empty Catalog, follow these steps:

  1. Generate an INSTILL_API_TOKEN by going to Console > Settings > API Tokens or following the steps here
  2. Copy and paste the following snippet into your Python script or terminal, replacing the ******** with your API token, and NAMESPACE_ID with your namespace ID
  3. Hit enter to create the Catalog
Python
cURL

from instill.clients import init_artifact_client
artifact = init_artifact_client(api_token="********")
artifact.create_catalog(
namespace_id="NAMESPACE_ID",
name="shakespeare",
description="Works of Shakespeare"
)

#Example Response

A successful response will return details about the newly created Catalog:


{
"catalog": {
"catalogId": "shakespeare",
"name": "shakespeare",
"description": "Works of Shakespeare",
"createTime": "2024-09-03 22:19:32.77246 +0000 UTC",
"updateTime": "2024-09-03 22:19:32.774342789 +0000 UTC",
"ownerName": "a7219ce0-4c6c-4dd5-8ac5-1fbf87aedd4a",
"tags": [],
"convertingPipelines": [
"preset/indexing-convert-pdf"
],
"splittingPipelines": [
"preset/indexing-split-text",
"preset/indexing-split-markdown"
],
"embeddingPipelines": [
"preset/indexing-embed"
],
"downstreamApps": [],
"totalFiles": 0,
"totalTokens": 0,
"usedStorage": "0"
}
}

#Upload Files

To upload the midsummer-nights-dream.pdf file to the shakespeare Catalog, follow these steps:

  1. Navigate within your terminal to the directory where the midsummer-nights-dream.pdf file is located
  2. Copy and paste the following snippet into your terminal, replacing the ******** with your API token, and NAMESPACE_ID with your namespace ID
  3. Hit enter to upload the file
Python
cURL

artifact.upload_catalog_file(
namespace_id="NAMESPACE_ID",
catalog_id="shakespeare",
file_path="/path/to/midsummer-nights-dream.pdf",
)

#Example Response

A successful response will return details about the newly uploaded file:


{
"file": {
"fileUid": "cd750b8f-5769-407c-afc0-955424387863",
"name": "midsummer-nights-dream.pdf",
"type": "FILE_TYPE_PDF",
"processStatus": "FILE_PROCESS_STATUS_NOTSTARTED",
"processOutcome": "",
"retrievable": false,
"content": "",
"ownerUid": "a7219ce0-4c6c-4dd5-8ac5-1fbf87aedd4a",
"creatorUid": "a7219ce0-4c6c-4dd5-8ac5-1fbf87aedd4a",
"catalogUid": "593e376c-87c5-49d1-9135-1e88eb5ee847",
"createTime": "2024-09-03T22:20:29.025902Z",
"updateTime": "2024-09-03T22:20:29.026284095Z",
"deleteTime": null,
"size": "1207112",
"totalChunks": 0,
"totalTokens": 0
}
}

#Process Files

To process the uploaded file into chunks and corresponding embeddings, follow these steps:

  1. Copy and paste the following snippet into your terminal, replacing the ******** with your API token
  2. Replace FILE_UID with the file UID from the previous Upload Files response
  3. Hit enter to process the file into AI-ready Instill Catalog
Python
cURL

artifact.process_catalog_files(
file_uids=["FILE_UID"]
)

#Example Response

A successful response will show that the files processStatus has changed to FILE_PROCESS_STATUS_WAITING. This means the file has been scheduled for processing.

#Ask Catalog API

With the Ask Catalog API, you can easily test and explore the knowledge contained within your new Catalog. Try it yourself using the steps below:

  1. Copy and paste the following snippet into your terminal, replacing the ******** with your API token, and NAMESPACE_ID with your namespace ID
  2. Hit enter to ask your Catalog a question
Python
cURL

artifact.question_answering(
namespace_id="NAMESPACE_ID",
catalog_id="shakespeare",
question="Who are the main characters involved in the love triangle in Act I?",
top_k=5,
)

Explore your Catalog and test it's knowledge by asking your own questions about the play! For instance, you could also try asking "What role do the fairies play?".

#Example Response

A successful response will return the answer to the question, along with a list of similar chunks from the Catalog that the LLM used to generate the answer.


{
"answer": "The main characters involved in the love triangle in Act I are Hermia, Lysander, and Demetrius.",
"similarChunks": [
{
"chunkUid": "6fe30865-731f-4524-958b-5f12a6ab53a4",
"similarityScore": 0.5944186,
"textContent": "\n\n\n## ACT I \n\n\n### SCENE I. Athens. A room in the Palace of Theseus \npower I am made bold, Nor how it may concern my modesty In such a presence here to plead my thoughts: But I beseech your Grace that I may know The worst that may befall me in this case, If I refuse to wed Demetrius. THESEUS. Either to die the death, or to abjure For ever the society of men. Therefore, fair Hermia, question your desires, Know of your youth, examine well your blood, Whether, if you yield not to your father’s choice, You can endure the livery of a nun, For aye to be in shady cloister mew’d, To live a barren sister all your life, Chanting faint hymns to the cold fruitless moon. Thrice-blessèd they that master so their blood To undergo such maiden pilgrimage, But earthlier happy is",
"sourceFile": "midsummer-nights-dream.pdf"
},
{
"chunkUid": "838cf477-290c-4484-8f17-78be26bcd946",
"similarityScore": 0.56566054,
"textContent": "\n\n\n## ACT I \n\n\n### SCENE I. Athens. A room in the Palace of Theseus \n[ _Exeunt all but_ LYSANDER _and_ HERMIA_._ ] LYSANDER. How now, my love? Why is your cheek so pale? How chance the roses there do fade so fast? HERMIA. Belike for want of rain, which I could well Beteem them from the tempest of my eyes. LYSANDER. Ay me! For aught that I could ever read, Could ever hear by tale or history, The course of true love never did run smooth. But either it was different in blood— HERMIA. O cross! Too high to be enthrall’d to low. LYSANDER. Or else misgraffèd in respect of years— HERMIA. O spite! Too old to be engag’d to young. LYSANDER. Or else it stood upon the choice of friends— HERMIA. O hell! to choose love by another’s eyes! LYSANDER. Or, if there were a sympathy",
"sourceFile": "midsummer-nights-dream.pdf"
},
{
"chunkUid": "49c79ce7-e2a6-4f24-aa5f-12252911e382",
"similarityScore": 0.5614925,
"textContent": "\n## ACT III \n\n\n### SCENE I. The Wood. \nI pray thee, gentle mortal, sing again. Mine ear is much enamour’d of thy note. So is mine eye enthrallèd to thy shape; And thy fair virtue’s force perforce doth move me, On the first view, to say, to swear, I love thee. BOTTOM. Methinks, mistress, you should have little reason for that. And yet, to say the truth, reason and love keep little company together nowadays. The more the pity that some honest neighbours will not make them friends. Nay, I can gleek upon occasion. TITANIA. Thou art as wise as thou art beautiful. BOTTOM. Not so, neither; but if I had wit enough to get out of this wood, I have enough to serve mine own turn. TITANIA. Out of this wood do not desire to go. Thou shalt remain here whether thou wilt or no.",
"sourceFile": "midsummer-nights-dream.pdf"
},
{
"chunkUid": "25955be1-9f4a-4acd-a9a9-a337b0ed73f5",
"similarityScore": 0.5575189,
"textContent": "\n## ACT III \n\n### SCENE II. Another part of the wood \n\n###### HELENA. \nwhat, my love, shall I compare thine eyne? Crystal is muddy. O how ripe in show Thy lips, those kissing cherries, tempting grow! That pure congealèd white, high Taurus’ snow, Fann’d with the eastern wind, turns to a crow When thou hold’st up thy hand. O, let me kiss This princess of pure white, this seal of bliss! HELENA. O spite! O hell! I see you all are bent To set against me for your merriment. If you were civil, and knew courtesy, You would not do me thus much injury. Can you not hate me, as I know you do, But you must join in souls to mock me too? If you were men, as men you are in show, You would not use a gentle lady so; To vow, and swear, and superpraise my parts, When I am sure you",
"sourceFile": "midsummer-nights-dream.pdf"
},
{
"chunkUid": "d5f623aa-0985-4b48-aee5-a8f90e16a1f6",
"similarityScore": 0.5506241,
"textContent": "\n## ACT IV \n\n\n### SCENE I. The Wood \n\n###### TITANIA. \ntheir horns. _Horns, and shout within._ DEMETRIUS, LYSANDER, HERMIA _and_ HELENA _wake and start up._ Good morrow, friends. Saint Valentine is past. Begin these wood-birds but to couple now? LYSANDER. Pardon, my lord. _He and the rest kneel to_ THESEUS_._ THESEUS. I pray you all, stand up. I know you two are rival enemies. How comes this gentle concord in the world, That hatred is so far from jealousy To sleep by hate, and fear no enmity? LYSANDER. My lord, I shall reply amazedly, Half sleep, half waking; but as yet, I swear, I cannot truly say how I came here. But, as I think (for truly would I speak) And now I do bethink me, so it is: I came with Hermia hither. Our intent Was to be gone from Athens, where",
"sourceFile": "midsummer-nights-dream.pdf"
}
]
}

#Next Steps

  • Seamlessly integrate your Catalog with Instill Component to create powerful AI pipelines
  • Learn how Instill Artifact processes your files into a unified AI-ready format
  • Experiment with the Retrieve Chunks API to find semantically similar text chunks in your Catalog
